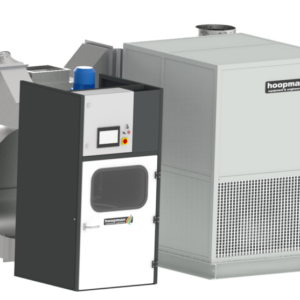

Fluid Bed Mini Dryer

FBM – Fluid Bed Mini Dryer

“Simple and easy drying of small seed lots”

The FBM is a low cost fluid-bed mini dryer specially made for small seed lots (up to 200 litres). The FBM is based on fluid-bed technique commonly used in the industry. The flexibility of the FBM is high because it is mounted on 4 swivel wheels and it is a plug and dry version. You can place it anywhere you want, connect it to a power supply and dry




  • Product characteristics:
     Most efficient fluid bed system available in the industry  Standard plug and dry version
  • Easy to operate
  • Simple straight forward design
  • High flexibility, mounted on 4 swivel wheels, dry where you want
  • Standard with 100 litres aluminium bucket
  • Control box with: o PID controlled electrical heating system o Frequency controlled fan o Digital drying timer in HH:MM
  • Standard with grey high quality finish
  • CE-European industry standard


 Various sizes of holding bucket available (up to 200 litres)


  • Power supply : 8.5 kW (with integrated electrical heat system) : 3×400 Vac 50Hz / 16A

    Dimensions (FBM with 100 litre bucket)
     Length : 1220mm            Width : 900mm         Height : 1000mm

Weight : approx. 100kg
