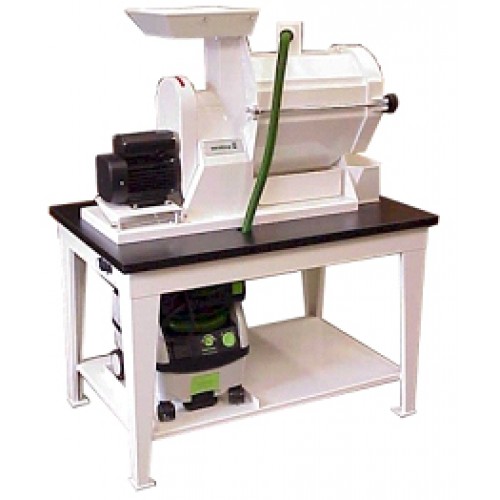

LA-H Brushing Machine
The LA-H brushing machine for laboratory use is designed for batch and continuous flow polishing, hulling or scarifying of small volumes of seed or grain samples prior to cleaning and grading
Description
The LA-H brushing machine for laboratory use is designed for batch and continuous flow polishing, hulling or scarifying of small volumes of seed or grain samples prior to cleaning and grading
The LA-H can be used for loosening and removal of beards, husks, straw etc. before cleaning. It can also divide dried spices, split double grains and be used for polishing work.
Continuous separation capacity is up to 200 kg per hour on wheat.
In standard construction, the LA-H machines are delivered with:
– with feeding tray, aspiration tube and integrated dust suction unit
– motors for 1 x 240 V, 50 Hz; main shaft motor is 550 W and dust suction motor is 1050 W
– collecting bins for both outlets and mounted on a convenient worktable
The machine is of steel construction.
Special Features
- List ItemAuto-transformer for 110 V, 60 Hz
- Inlet hopper with vibratory feeder
- Outlet pipe connection for transport of material to box on the floor
- Front outlet pipe connection
- Motor 0.75 KW with frequency converter for main shaft drive
